Brake servo in with new butamin seal on there
Painted servo and master cylinder in
Got the flexie pipes pipes fitted, 2 new pipes to the master cylinder fitted as I am now running a Calibra Turbo 23.8mm master cylinder.
Then serveral months later, the rest of the flexie turned up, all the way to the rear!

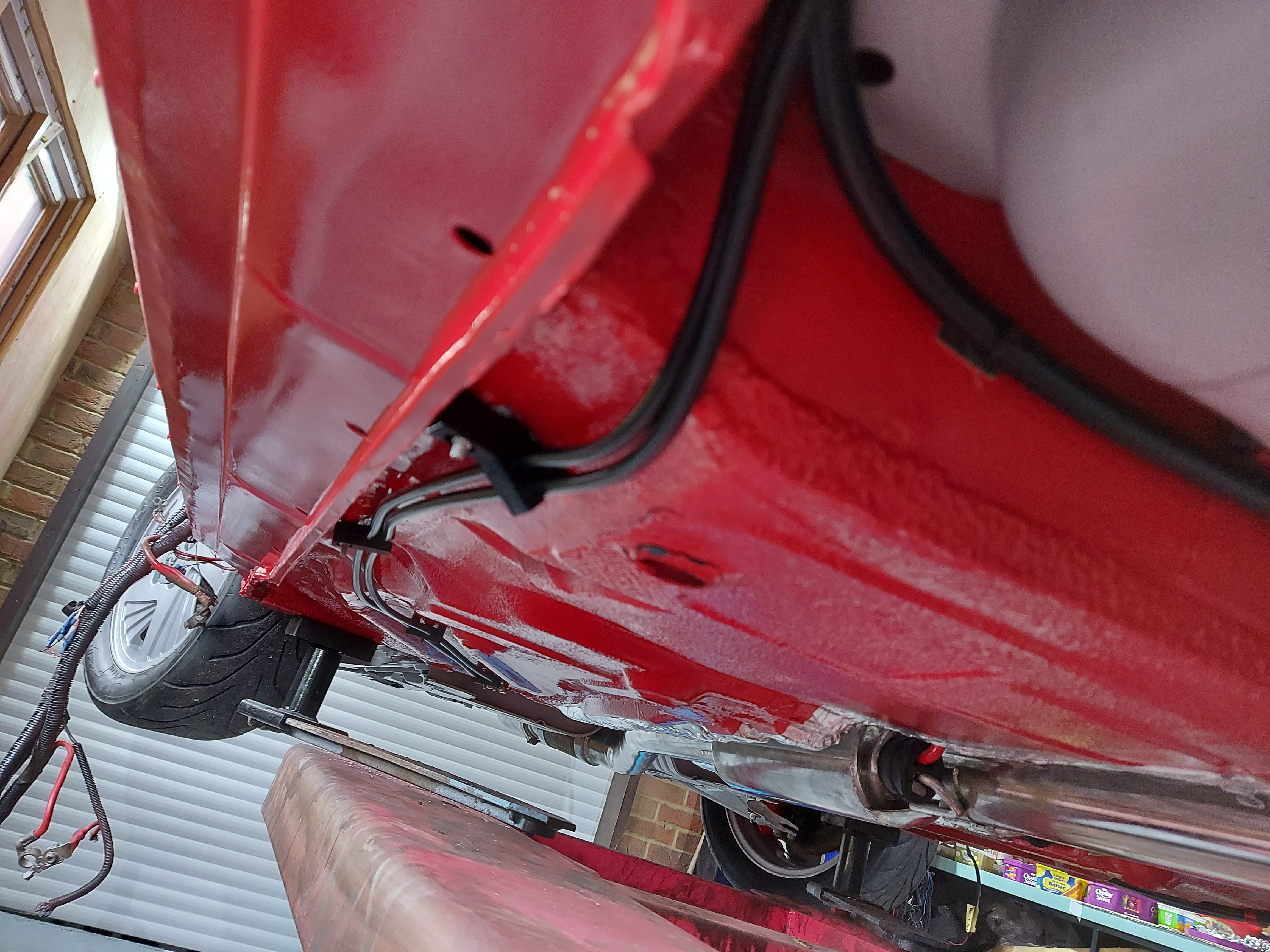

Incredibly close to the fuel line fittings...
But I was able to find a way round it. I had to think about it but the problem was with the fuel line, if I ran the brake line straight to it was going to end up with some pretty tight kinks in the pipe so i decided this was the lesser of 2 evils and made a nice loop radius in the brake line, looks a bit gay, but does the job lol
Passenger side all good though
As people may of noticed, I have binned off the restrictor valve for the rear axle.... This either will or wont effect the car lol. I have kept the ABS so nothing extreme is going to happen. But also the back of the car was so low that the load restrictor was at max anyways, which mean it thinks the car is loaded, so I would of had maximum braking anyways.
If it is constantly kicking the ABS in, i'll look at some restrictors, but i think it will be ok
Painted servo and master cylinder in
Got the flexie pipes pipes fitted, 2 new pipes to the master cylinder fitted as I am now running a Calibra Turbo 23.8mm master cylinder.
Then serveral months later, the rest of the flexie turned up, all the way to the rear!
Incredibly close to the fuel line fittings...
But I was able to find a way round it. I had to think about it but the problem was with the fuel line, if I ran the brake line straight to it was going to end up with some pretty tight kinks in the pipe so i decided this was the lesser of 2 evils and made a nice loop radius in the brake line, looks a bit gay, but does the job lol
Passenger side all good though
As people may of noticed, I have binned off the restrictor valve for the rear axle.... This either will or wont effect the car lol. I have kept the ABS so nothing extreme is going to happen. But also the back of the car was so low that the load restrictor was at max anyways, which mean it thinks the car is loaded, so I would of had maximum braking anyways.
If it is constantly kicking the ABS in, i'll look at some restrictors, but i think it will be ok

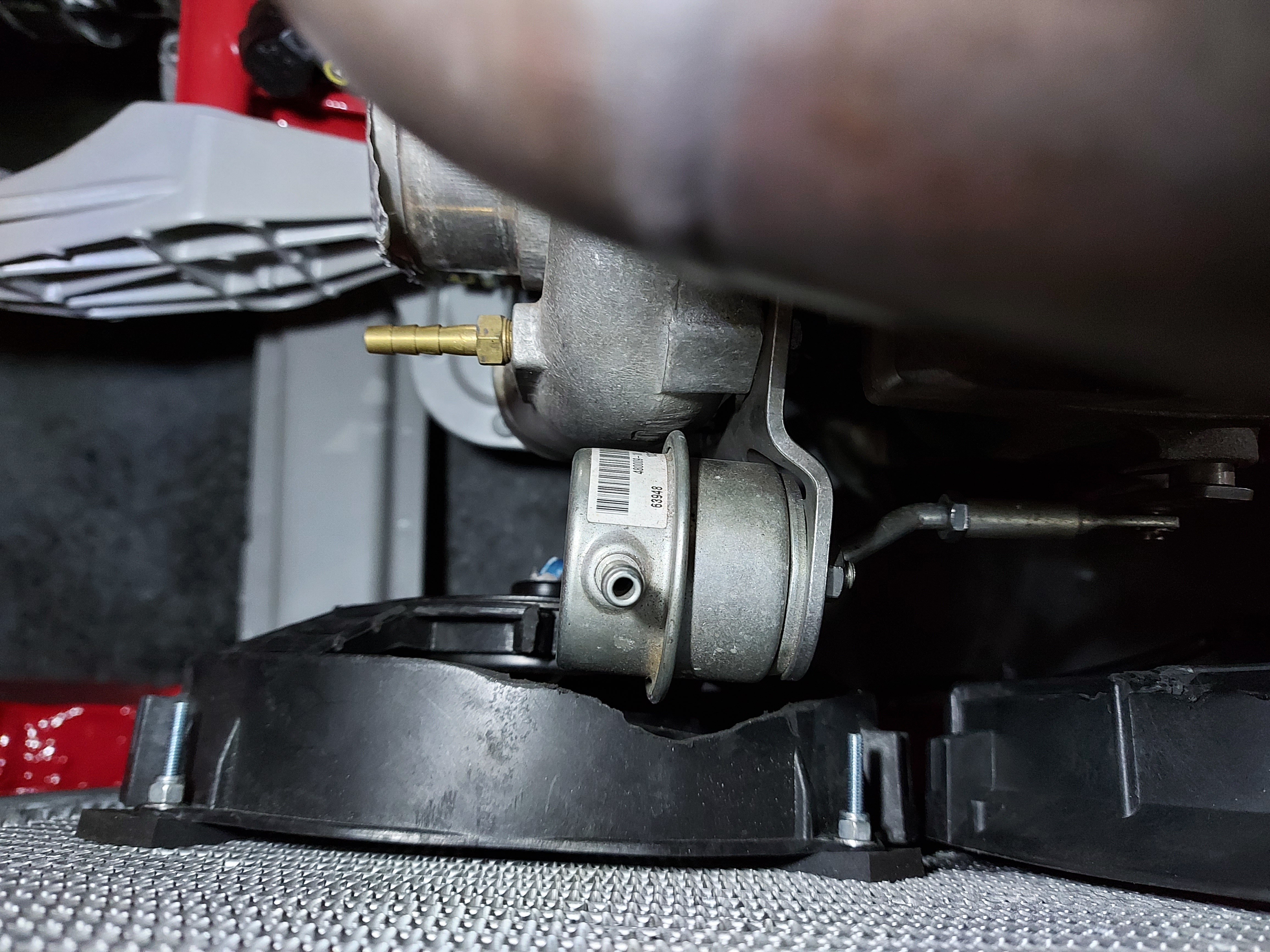

Next up, plumbed in the Oil Catch Tank.
Ordered myself some oil resistant, fluro-lined hoses from Roosemotorsport, don't want any oil sweating from my hoses!
Rocker breather, exactly 1 metre long, out the rocker, under the inlet and off to the tank
Secondary breather from the crank case breather tube, 'T'd off and sent to the catch tank too.
Then finally, coming out of the catch tank, the sump return for any oil. The catch tank has an oil seperator plate in it so any oil vapour hits the plate, condenses, then dribbles back to the sump via this return line... if I have built the engine well enough, this should be minimal haha
Ordered myself some oil resistant, fluro-lined hoses from Roosemotorsport, don't want any oil sweating from my hoses!
Rocker breather, exactly 1 metre long, out the rocker, under the inlet and off to the tank
Secondary breather from the crank case breather tube, 'T'd off and sent to the catch tank too.
Then finally, coming out of the catch tank, the sump return for any oil. The catch tank has an oil seperator plate in it so any oil vapour hits the plate, condenses, then dribbles back to the sump via this return line... if I have built the engine well enough, this should be minimal haha
Last little update, My accelerator cable was looking very tired, not sure if anyone else has had this issue, But the plastic coating has gone brittle and fallen off leaving just the metal on show, which had then gone rusty!!
So I did some measuring and order some 4-1 heat shrink! Usually used on wiring to seal connections, this 4-1 shrink was perfect to just about go over the ends of the accelerator cable, but shrink enough to wrap it tight, I did it and it worked perfectly! Gave it a nice smooth finish and looks OE I think!
Just had to fit it which it was still hot which was exciting so I didn't end up with ripples on the inside, but worked a treat!
More to come!
So I did some measuring and order some 4-1 heat shrink! Usually used on wiring to seal connections, this 4-1 shrink was perfect to just about go over the ends of the accelerator cable, but shrink enough to wrap it tight, I did it and it worked perfectly! Gave it a nice smooth finish and looks OE I think!
Just had to fit it which it was still hot which was exciting so I didn't end up with ripples on the inside, but worked a treat!
More to come!
